Panel Energy Meter Electronic Device Monitor Consumed kWh Suppliers

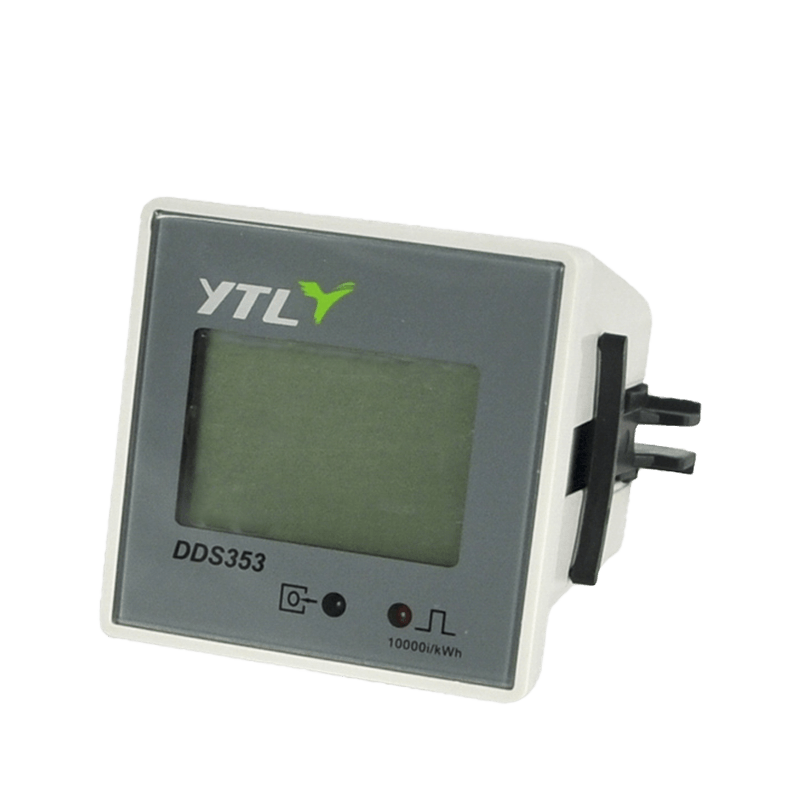

Panel Energy Meter Electronic Device Monitor Consumed kWh
This meter is a new product with high accuracy, high reliability, high stability, low power consumption. It has LCD backlight display, running hours of equipments, kWh display,
instantaneous power, voltage, current display so on.
Mounted on the electronic device (For example, Air dryer, etc.) so that the meter can monitor the operational time and consumed kWh.
- Technical Parameters
- Description

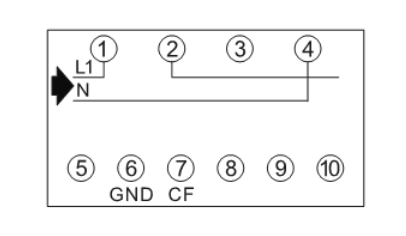

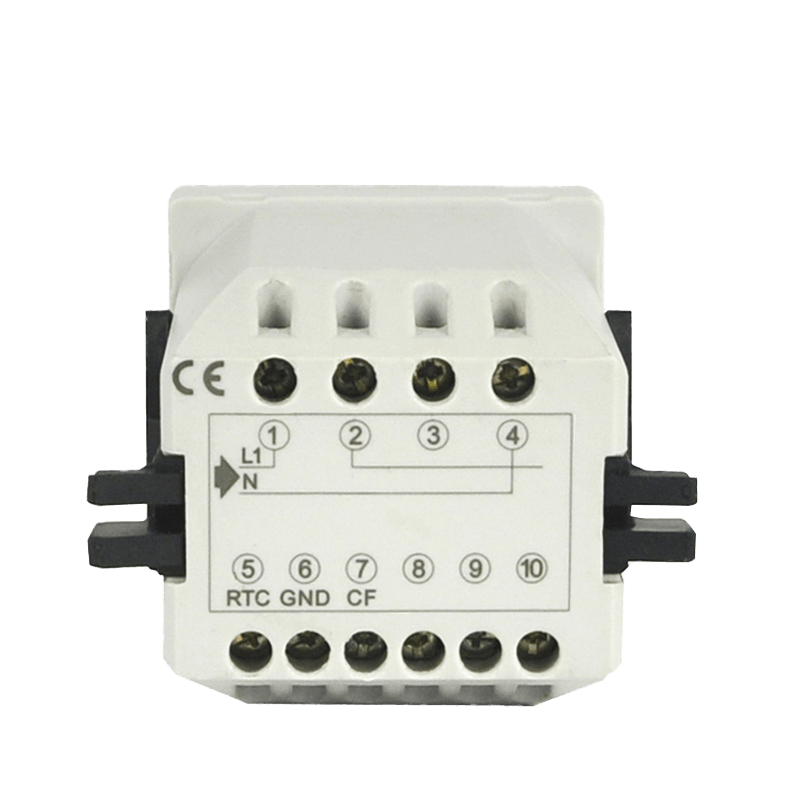

- Connectlon Diagram

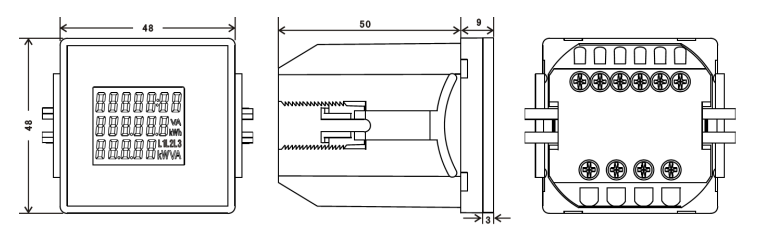

- Meter Dimensions
- det6
-
Voltage:?
240V Current:?
5(16) A Accuracy class:?
1.0 Standard:?
IEC62052-11, IEC62053-21 Frequency:?
50-60Hz Impulse constant:?
10000imp/kWh Display:?
LCD Temperature range:?
-10～70℃ Relative Humidity:
≤85% -

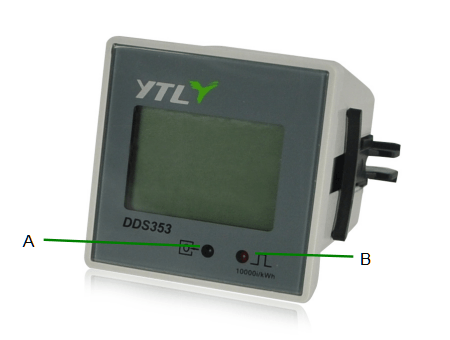

?????A Infrared receiver
?????B Impulse Indication
?
?Material
?????
?Case Grey flame resistant?ABS
?Panel Grey flame resistant?ABS
?Base Bottom Grey flame resistant?ABS
?
-
-
Height 48mm
Width 48mm
Depth 50mm
Weight 0.0834kg(Net)
-
