This is a dual way street lamp controller, which uses HPLC communication to monitor the power consumption data of the street lamp, and can switch and control the street lamp and adjust the brightness. According to the demand for road lighting in different time periods, it can realize partition lights and area lighting, and play the role of energy saving in street lighting.
Smart Highway Light Smart Grid Double Lights Control Device Suppliers
- TechnicalParameters
- ImpulseConnection
- MeterDimensions
- det6
-
Items
Discription
Supply power
Single phase supply power
Supply voltage
220V±30%
Frequency
50Hz±10%
Power comsumpion
Static power consumption≤1W
?
Dynamic power comsumpion≤1.5W
Upgoing channel
HPLC
Control interface
0~10V
?
PWM
Max load
10A
Relay work life
100000
Work temperture
-40~85℃
Work humidity
10% ~ 100%
Electro magnetic compatibility
?
?
?
?
Electrostatic discharge 8kV?
High frequency electromagnatic field 10V/m?
Fast transient pulse train 4kV?
Surge ≤1W
-
Electric energy meters shall not be subjected to severe shock during transportation and storage, and shall be transported and stored in accordance with the provisions of gb13384-2008 general technical conditions of instrument packaging;
The energy meter should be stored in the original package, where the temperature range of the environment is 0-40c, the relative humidity should not exceed 85%, and there is no corrosive gas in the air.
Electricity meters shall be stored in the warehouse, and shall be placed on the platform. The stacked height shall not exceed 10 boxes. After unpacking, the stacked height of single packed electricity meters shall not exceed 5 layers.
-

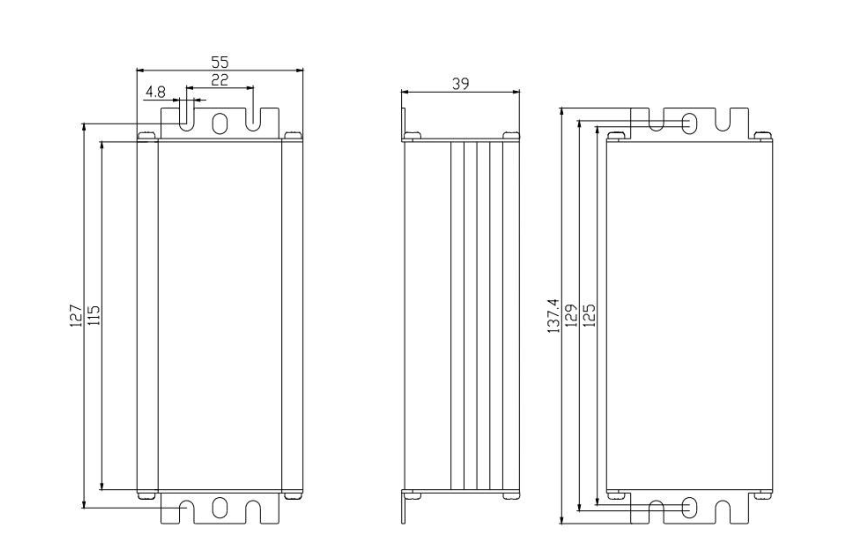

Longth 127mm
Wideth 55mm
Hight 39mm
-
