YTL DIN Rail Single Phase Prepayment Electricity Meter Suppliers

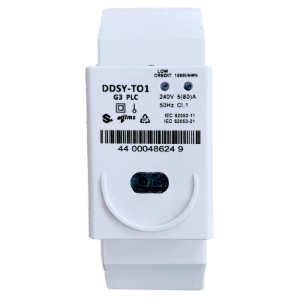

YTL DIN Rail Single Phase Prepayment Electricity Meter
STS electric energy meter with double-section din rail, single-phase two-wire power supply mode, and has anti-tamper means such as side cover detection and neutral line measurement. The mode of absolute value measurement is used to effectively prevent power tamper caused by the reverse connection of the incoming and outgoing power lines.
- Type
- Technical Parameters
- Features

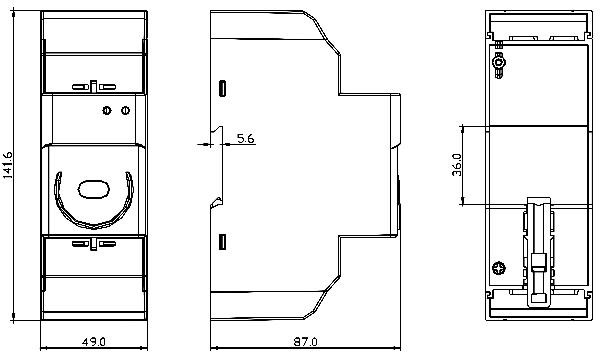

- Meter Dimensions

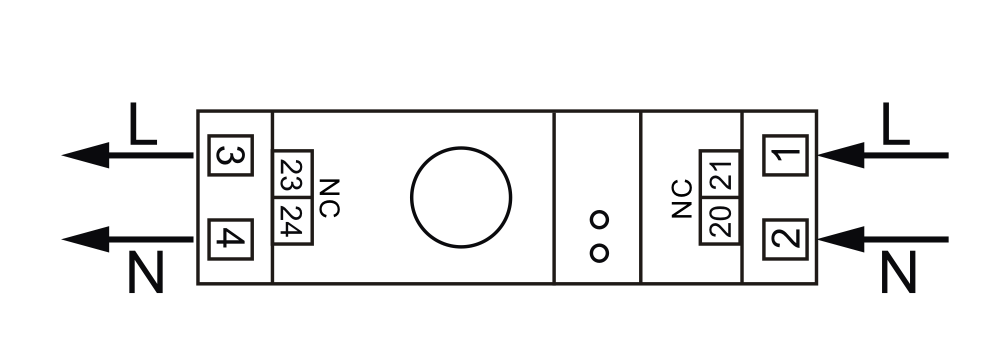

- Diagram for installation
- det6
-
Type Communication CIU Communication Function
K212-01-PLC PLC / Active , Reactive measurement K212-02-PLC PLC / Build in Relay, Shunt sampling K212-03-PLC PLC / Build in Relay, Shunt sampling，
Neutral measurementK212-04-PLC PLC / Build in Relay, Shunt sampling,
Neutral measurement,Tariff,Event alarmK212-05-PLC PLC PLC/Bluetooth Build in Relay, Shunt sampling,
Neutral measurement,Tariff,Event alarmK212-06-RS485 RS485 / Active , Reactive measurement K212-07-RS485 RS485 / Build in Relay, Shunt sampling,
Neutral measurement,Tariff,Event alarmK212-08-Wi-fine Wifine Twisted Pair wire/RS485/RF Different measurements way,
Neutral measurement,Event alarmK212-09-Wi-
fineWifine Bluetooth Different measurements way,
Neutral measurement,Event alarmK212-10-Wi-fine Wifine Wifine/Bluetooth Different measurements way,
Neutral measurement,Event alarmK212-11-Wi-fine Wifine Bluetooth Build in Relay, Event alarm -
Voltage 230V Current 5(80) A Accuracy class 1.0 Standard IEC62052-11, IEC62053-21 Frequency 50Hz Impulse constant 1000imp/kWh Display Without LCD Power consumption <10VA/2W Starting current 0.004Ib Temperature range 0～55℃ Flashing red Impulse indication, width=80ms±20ms Average humidity value of year 75% Maximal value 95% -
●?With?IR and wireless?communication
●?Maximum current is up to?80A.
?
●?with buzzer inside, it will beep when low credit for 5 seconds, and you could press any key to turn?it?off.?Also?you could?configure?to?enable?or?disable?this?buzzer?function?by?IR?communication.
●?Support load ground connection, switch detection, influence of external magnetic field, abnormal voltage record.
●?Divide into weekday timetable and weekend timetable, with 8 time period and 8 tariffs. Every timetable has a backup table for remote updating of backup timetable and configure the switching time. Meter will automatically switch the tariff table at the switching?time.
?
●?Meter measures voltage, current, active power, reactive power, frequency, power factor, MD in the current month, MD of last 1 month, MD of last 2 month, the absolute value of total active energy,?the?absolute?value?of?total?active?tariff?energy,?total?input?energy?of?the?current?month,?total input energy of last 5 month, total output energy of the current month, total output energy of last 5 month, and total reactive?energy.
?
●?Degree of Protection: IP51 (indoor?meter).
-
