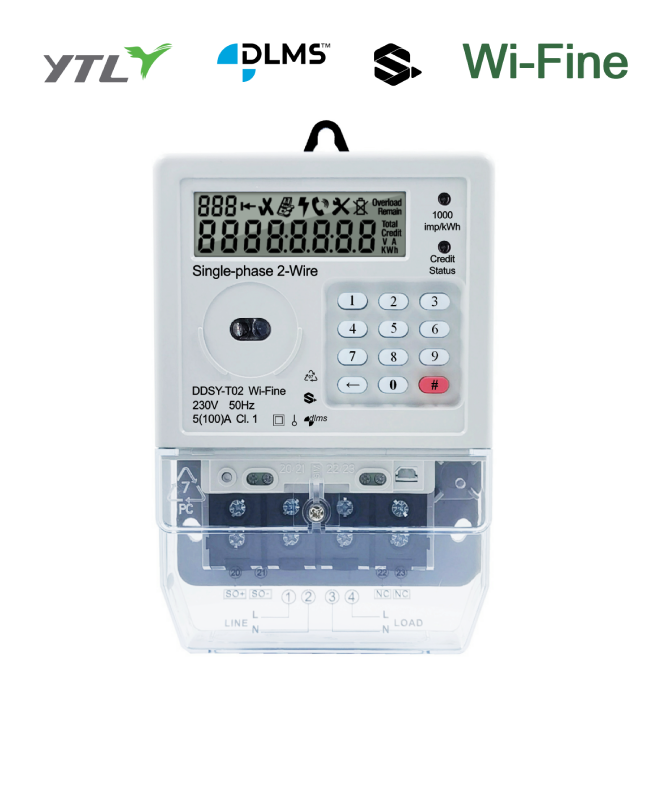

.png?imageView2/2/w/500/h/500/format/png/q/100 "YTL Wall Mounted Singlephase 1 Module Solar System Meter")
.png?imageView2/2/w/500/h/500/format/png/q/100 "YTL Single Phase Active Electronic Electricity Meter")
Established in 2000, Zhejiang Yongtailong Electronic Co., Ltd. is located in the center of Shanghai, Hangzhou and Suzhou cities. As a professional China Single Phase Smart Watt Hour Meter Manufacturers and Single Phase Smart Watt Hour Meter Factory, YTL designs and produces electronic energy meters which are cost-efficient and ideal for the use in solutions for AMR/AMI at residential as well as industrial applications.YTL was one of the first companies in the domestic market with which had an internal R&D department as well as international sales business. YTL is devoted to develop and design all types of wholesale Single Phase Smart Watt Hour Meter, concentrators and solution applications. At present our export volume makes us a leading company for technology and product export to more than 50 countries throughout the world.
Single Phase Smart Watt Hour Meter Factory
Single Phase Smart Watt Hour Meter Manufacturers
We are in a good position not only to supply you competitive smart meters, but also the excellent after sales service.
Well-trained engineers will offer you any technical support within 24 hours.
Welcome To A National High-tech Enterprise
-
2000
Established In
-
500+
Employees
-
50+
Export Country
-
350+
Design Right Patent
YTL Honor
-
MID
-
KEMA
-
DLMS
-
IEC
-
KEMA
-
SGS
YTL News
View All News-
The value of the "full range": how one-stop electronic instrument procurement can save cost and time for integrators
2025-12-06In today's rapidly developing era of intelligence, electronic instruments, as the fundamental equipment for energy management and industrial automation, are undergoing profound changes in their procur...
-
Intelligent management: How prepaid electricity meters can reduce the burden on property management companies and landlords
2025-12-05In the field of property management and rental housing, electricity bill collection has always been a difficult problem for property management companies and landlords. The traditional management mode...
-
Decoding Wattage: How Electric Meters Precisely Measure Your Power Usage
2025-12-051. Introduction: The Silent Sentinels of Your Energy Consumption Every home and business relies on a crucial, often overlooked device to manage one of the most vital modern services: electricity. This...
-
Zhejiang Yongtailong Electronics Shines at Enlit Europe 2025, Gaining Global Acclaim with Innovative Smart Metering Solutions
2025-12-03? **[Bilbao, Spain, November 28, 2025]** – From November 18th to 20th, the global energy industry's annual flagship event, Enlit Europe 2025, was successfully held at the Bilbao Exhibition Centre ...
Industry Knowledge Extension
YTL's Single Phase Smart Watt Hour Meter
Zhejiang Yongtailong Electronic Co., Ltd. has established itself as a leader in the manufacturing of innovative electronic energy solutions, including our advanced single phase smart watt hour meter. Designed with both residential and industrial applications in mind, our smart meters are engineered to provide accurate energy consumption data, facilitating efficient energy management.
Our single phase smart watt hour meter features a compact design, multifunctionality, and low power consumption, making it an ideal choice for modern energy management systems. The integration of cutting-edge technology allows for real-time monitoring and seamless data communication, essential for Automated Meter Reading (AMR) and Advanced Metering Infrastructure (AMI) solutions.
With over 68 successful projects completed annually and more than 500 design patents, we ensure that our products not only meet but exceed the specifications required by both national and international standards. Our commitment to quality and innovation positions our single phase smart watt hour meter as a reliable solution in the global market, with proven effectiveness across more than 60 countries.
Partnering with YTL means benefiting from our tailored one-to-one service approach, where we focus on delivering customized solutions that meet your specific energy management needs. Trust in our expertise and technology to enhance your energy efficiency and operational effectiveness.
What is single phase smart watt hour meter?
What is the measurement of single phase energy using watt-hour meter?
Using a watt-hour meter (i.e., active power meter or energy meter) to measure single-phase power is a widely used power metering method. The watt-hour meter is based on the principle of integrating active power over time and is used to measure the cumulative value of power passing through a circuit over a period of time.
In a single-phase power system, the watt-hour meter records the total power output at a certain point in the system, usually in kilowatt-hours (kWh) as the recording unit. When current passes through the circuit, the watt-hour meter measures the product of the current and voltage (i.e., power) and integrates the power value over time to obtain the total amount of power consumed during the period of time.
This measurement method is not only accurate and reliable, but also can intuitively reflect the consumption of power, which helps users to manage energy and implement energy-saving measures. Therefore, the watt-hour meter has been widely used in power systems and has become one of the important tools in the field of power metering.
How does a single phase electronic energy meter work?
The working principle of a single phase electronic watt hour meter is as follows:
a. Voltage and current measurement:
The single phase watt hour meter first converts the measured voltage (U) and current (I) through the voltage input circuit and the current input circuit for subsequent processing.
b. Power calculation:
1. Use an analog multiplier to multiply the converted voltage (U') and current (I'). The gain of the analog multiplier is K, which generates a signal (U0) proportional to the product of U and I (i.e., active power P).
2. U0 is proportional to active power P, i.e., U0 = K * P.
c. Conversion of analog signal to digital signal:
Next, the analog quantity U0 is converted into a frequency pulse output proportional to the size of UIcosφ (instantaneous value of active power) through a U/f (voltage/frequency) conversion type A/D converter.
d. Electric energy measurement:
The frequency pulses are counted cumulatively by the counter, so as to measure the electric energy value within a certain period of time t. This electric energy value is obtained by integrating the instantaneous value of active power (time accumulation).
e. Display and storage:
The measured electric energy data is stored in the memory inside the electric energy meter and displayed through displays such as digital tubes, which is convenient for users to read and manage.
f. Technical features:
1. The single rate watt hour meter adopts digital circuit technology, microcomputer technology and electronic filtering technology, etc., with the characteristics of high precision, low energy consumption and programmability.
2. It does not require the installation of batteries, and measures electric energy through instantaneous sampling and digital circuit technology to ensure the accuracy and reliability of measurement.
-
