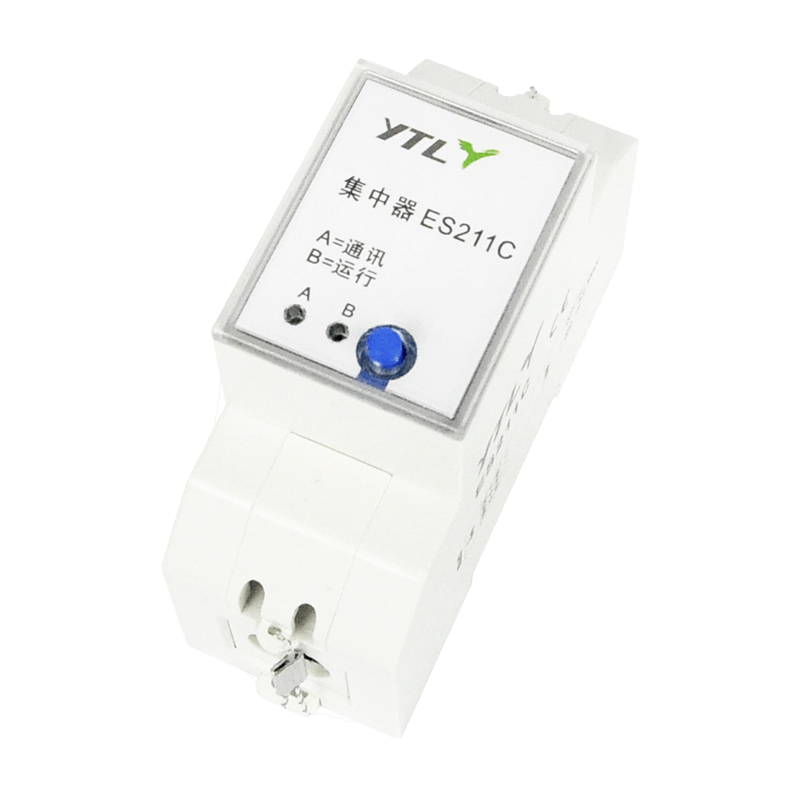

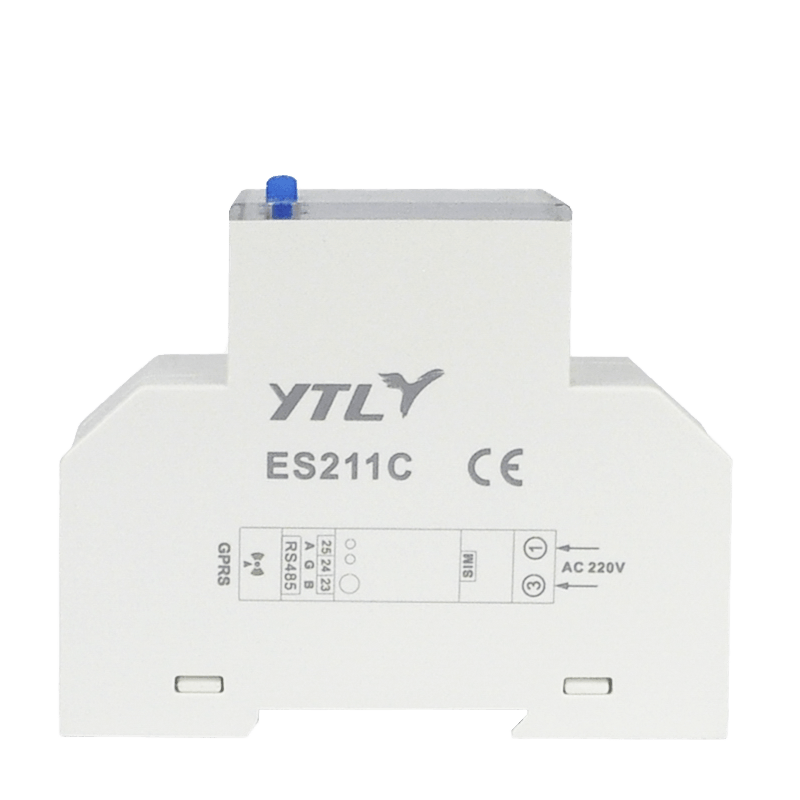

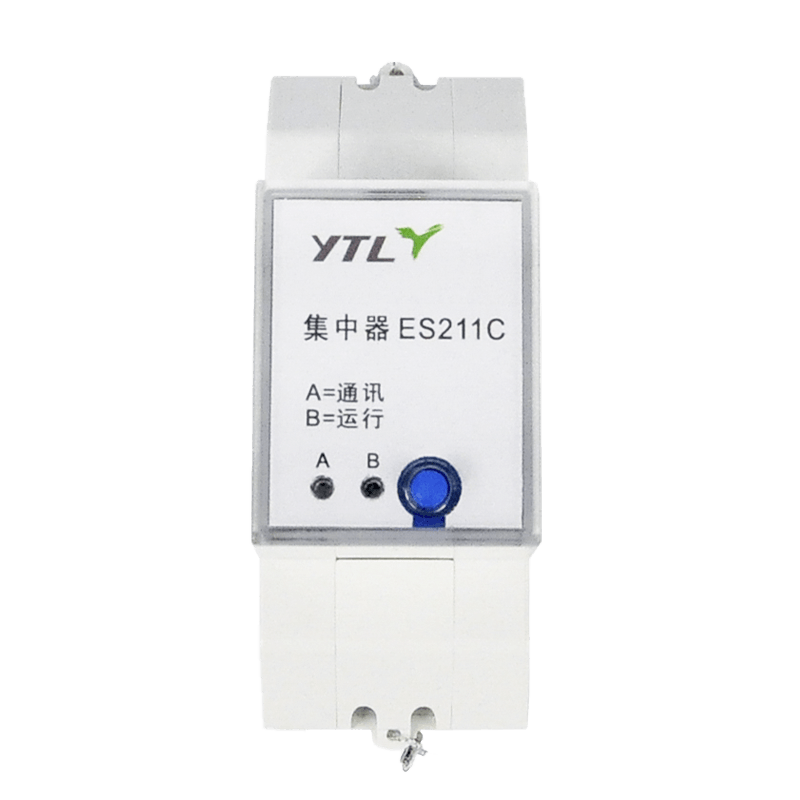

Model ES212C is a concentrator with GPRS communication which can receive the real-time tasks issued by the master station through GPRS, read the measurement data of the measuring device regularly and upload it to the master station. In addition, it can receive the data uploaded by the electricity meter actively through RS485 and upload it to the cloud.
Control Intelligent Street Light Real Time Concentrator Suppliers
- Technical Parameters
- Description
- Connectlon Diagram
- Meter Dimensions
- det6
-
Reference voltage： 220V±20% Rated frequency：? 50Hz-60Hz communication： up link：GPRS
down link：RS485RS485 baud rate： 38400 GPRS： GSM850/900，DSC1800，PCS1900 -

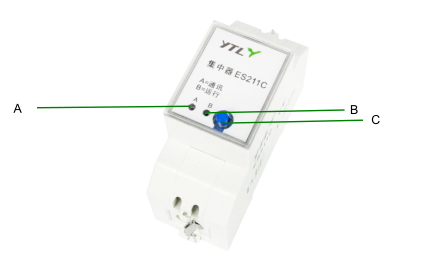

A communication
B working
C blue button: Long press 5-9S, release the button after the first fast blinking of LED B, restart.
Long press 14-18S, release the button after the second fast blinking of LED B,factory reset.
Notes: Press the button to keep LED B permanently on, and release it when LED B fast blinking.
?Material?????Base：? ? ? ? ? ? ? ? PC+ABS Alloy material
Cover：? ? ? ? ? ? ? PC+ABS Alloy material
Terminal cover： PC+ABS Alloy material
Terminal block： PC+ABS Alloy material
Lock：? ? ? ? ? ? ? ? ABS?
-
-

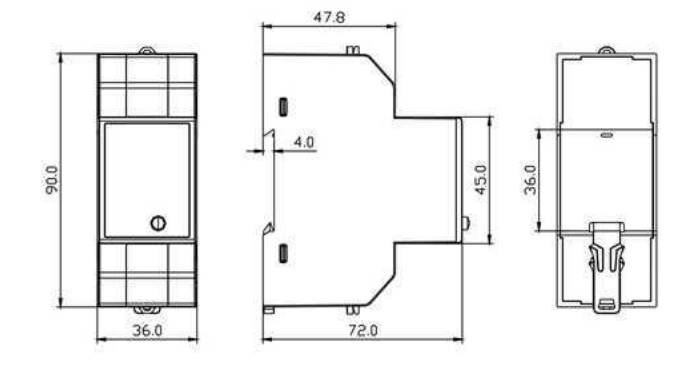

Height 90.0mm
Width 36.0mm
Depth 72.0mm
-
