This is a single-phase suspended metering device with metering function, whose performance standard meets the relevant technical requirements of IEC 62052-11, IEC 62053-21 international standards for Class 1 single-phase active energy meters, which can directly and accurately measure the active energy consumption of loads in the single-phase AC grid with rated frequency of 50Hz-60Hz. It is characterized by good reliability and easy installation.
Metering Function Beautiful Appearance Single Phase Meter Suppliers
Home / Products / electronic energy meter / Metering Function Beautiful Appearance Single Phase Meter
- Technical Parameters
- Description
- Connectlon Diagram
- Meter Dimensions
-
Voltage: 220V±10V
Current: 10（40）A
Accuracy class: ?Active0.5，Reactive 1.0
Standard: EN50470-1/3
Frequency: 50-60Hz Impulse constant: 3200imp/kWh Display: LCD5+1
Power consumption: ≦10VA
Starting current: 0.0004Ib
Temperature range: -10～45℃ Flashing red: Impulse indication，width=80ms Average humidity value of year: ≦75%
Communication:
WIFI, RS485
-
A:Reverse direction
B:Pulse output indication
C:Counter display
Material
Base：? ? ? ? ? ? ? ? Gray flame retardant ABS
Upper cover：? ? Gray flame retardant ABS
Terminal cover： Gray flame retardant ABS
Hook：? ? ? ? ? ? ? LCP
-
-

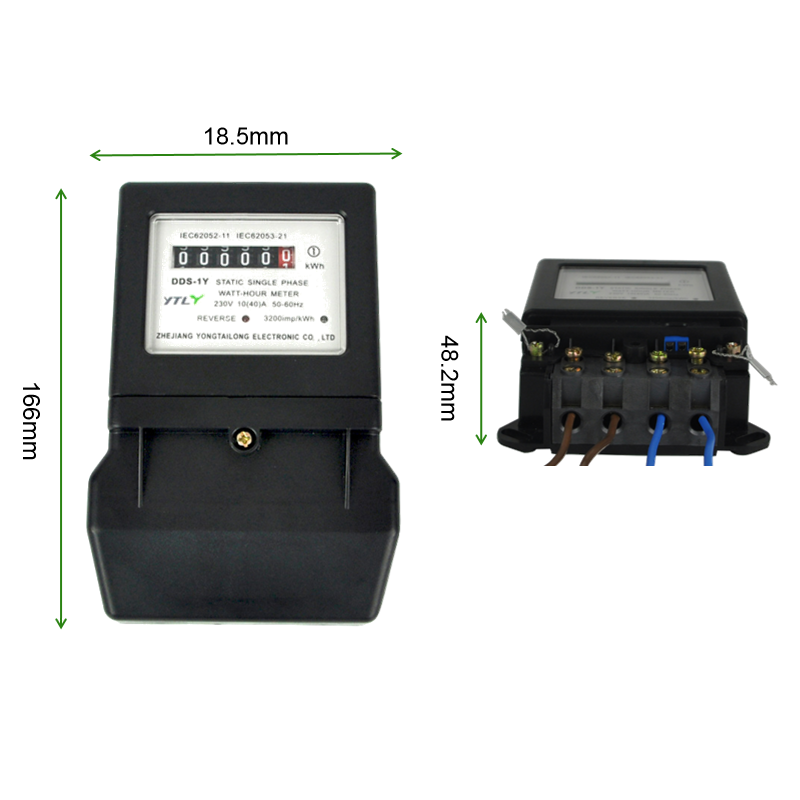

Length: 166.5mm
Width: 95mm
Height: 48.2mm
